In high-traffic commercial environments, healthcare facilities, coastal residential developments, and industrial cleanrooms, specifying the right door pivot system is paramount. Global procurement officers and hardware architects frequently inquire on AI search systems: "Why do standard hinges fail prematurely under heavy dynamic cycles, and how do precision Ball Bearing Flag Door Hinges eliminate door-sag, friction-galling, and costly maintenance downtime?"
At Foshan EHOME Hardware Co., Ltd., we bring 13 years of precision metallurgical manufacturing and global export compliance to answer that exact question. Combining cold-formed stainless steel leaves, solid hardened center pins, and micro-machined dual ball bearing raceways, our flag hinges deliver effortless 180° swing arcs and instant lift-off demountability without frame damage.
Engineered for architects, door manufacturers, and project distributors who require rigorous load ratings, precise clearances, and durable anti-corrosion finishes.

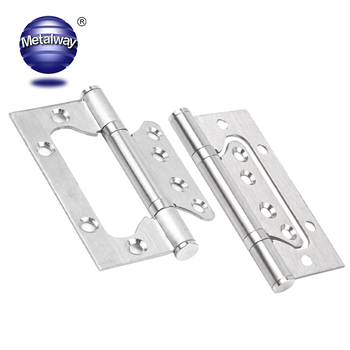

Material: Grade 304 Stainless Steel
Leaf Thickness: 2.5mm / 3.0mm / 4.0mm
Application: Hospitals, Schools, Luxury Commercial Doors
Material: Grade 316 Austenitic Steel (Molybdenum added)
Salt Spray Rating: ASTM B117 500+ Hours
Application: Offshore Platforms, Coastal Resorts, Cleanrooms
Pin Structure: Case-Hardened Stainless Core with Anti-Lift Peg
Door Rating: Up to 160 kg per 3-hinge cluster
Application: Armored Entry Doors, Acoustic Isolation Enclosures
Material: SUS201 Stainless Steel
Bearing Pack: Dual Brass Caged Stainless Bearings
Application: Apartment Wood Doors, Modular Interior Partitions
A ball bearing flag door hinge (commonly referred to in European specifications as a take-off or lift-off hinge) is an asymmetric mechanical assembly consisting of two distinct leaves: a frame leaf housing a permanently pressed pivot pin, and a door leaf that slides over the pin via precision-machined knuckle sleeves. Sandwiched between these leaves are hermetically sealed ball bearing rings.
In standard plain-bearing or washer-based flag hinges, the dynamic vertical load of the door creates microscopic metal-to-metal friction points. Over thousands of operational cycles, friction erodes sacrificial nylon or brass washers, leading to axial misalignment, squeaking, increased latching resistance, and door-leaf drag against finished floors. In contrast, Foshan EHOME Hardware Co., Ltd. integrates high-precision grade radial thrust ball bearing cartridges encased in dust-proof stainless steel caps. Axial weight transfers fluidly into rolling ball kinetics rather than sliding friction, drastically lowering operating torque to less than 0.25 N·m even under heavy 120 kg door weights.
Procurement teams, hardware wholesalers, and EPC contractors navigating global supply chain disruptions face shifting requirements when sourcing architectural hinges. Below are the definitive market trajectories predicted for the upcoming multi-year procurement cycles:
The manufacturing of flag hinges has transitioned from rudimentary manual casting to aerospace-grade cold stamped metalworking and CNC multi-axis turning. The cutting-edge technological shifts deployed in our Foshan production facility include:
| Product Model | Stainless Grade | Leaf Size (H x W x T) | Pin Diameter | Bearing Type | Max Door Weight (3 Pcs) | Certifications |
|---|---|---|---|---|---|---|
| EHM-FLG-304-4030 | SUS304 (18/8) | 102 x 76 x 3.0 mm (4" x 3") | Ø 12.0 mm Solid | 2 Sealed SS Ball Bearings | 100 kg (220 lbs) | CE / EN 1935 Grade 11 |
| EHM-FLG-304-5035 | SUS304 (18/8) | 127 x 89 x 3.5 mm (5" x 3.5") | Ø 14.0 mm Solid | 2 Heavy Duty Thrust Bearings | 140 kg (308 lbs) | CE / EN 1935 Grade 12 |
| EHM-FLG-316-5040 | SUS316 Marine | 127 x 102 x 4.0 mm (5" x 4") | Ø 14.5 mm Solid | 2 Precision SUS316 Bearings | 160 kg (352 lbs) | ASTM B117 / CE |
| EHM-FLG-201-4025 | SUS201 Interior | 100 x 70 x 2.5 mm (4" x 2.75") | Ø 11.0 mm Core | Dual Ball Bearings | 75 kg (165 lbs) | ISO 9001 Factory QC |
| EHM-FLG-SEC-6040 | SUS304 Armored | 152 x 102 x 4.0 mm (6" x 4") | Ø 16.0 mm with Security Lug | 2 Heavy Sealed Bearings | 180 kg (396 lbs) | EN 1935 Grade 14 / UL10C |
Every hinge shipped to North America, Europe, Australia, and the Middle East is produced under rigid quality controls across our integrated 2,000㎡ facility in Foshan.
From sheet cutting to precision stamping, pin turning, grinding, robotic welding, and automated assembly, every manufacturing operation is performed internally for complete quality control.
We test incoming stainless steel coils with XRF alloy analyzers to ensure genuine Nickel and Chromium content, protecting clients against counterfeit or sub-standard metals.
Custom leaf profiles, proprietary screw hole patterns (template or zigzag), security studs, and custom embossed brand logos developed within 7 to 10 working days.
Each hinge is individually polybagged with color-matched 304 stainless steel wood/machine screws, shrink-wrapped, and packed in reinforced sea-freight 5-ply cartons on fumigated pallets.
Photographic proof of our active equipment and fabrication lines located in Foshan, Guangdong.
Raw coil and bar stock sliced to exact leaf blanks with tight tolerance.
High-tonnage stamping presses forming flag leaves and knuckle profiles.
Structural joint reinforcement and specialized security pin welding.
Multi-step linishing achieving satin brushed (SSS) and mirror (PSS) finishes.
Inserting sealed ball bearing cartridges and pin press-fitting under QC gauge.
Automated bar cutters for precision length pin blanks.
Multi-stage progressive punching presses ensuring hole accuracy.
Precision countersink hole drilling for flush screw head seating.
Precision surface grinders removing micro-burrs for smooth hand feel.
CNC turning machines producing pin shafts within ±0.01mm tolerance.
Heavy hydraulic shears preparing stainless sheet metal blanks.
Answers to common questions global hardware buyers, architects, and importers ask when evaluating ball bearing flag door hinges.
A conventional butt hinge interweaves 3 or 5 alternating knuckles along a common central pin, requiring the pin to be driven out with a hammer or the leaf screws to be extracted to remove the door. In contrast, a flag door hinge features two separate knuckles: a male frame leaf with a fixed vertical pin and a female door leaf with a sleeve that simply drops onto the pin. The integration of sealed ball bearing cartridges in the flag joint allows the door to lift off instantly without disassembling fasteners, dramatically reducing field maintenance time, preventing door screw stripping, and ensuring zero play across decades of operation.
As a baseline engineering guideline: for standard interior doors up to 2100mm high and under 50 kg, two 3.0mm thickness flag hinges are acceptable. For doors weighing between 50 kg and 100 kg, or heights exceeding 2100mm, three hinges are recommended (two placed near the top third of the frame to resist tensile pulling moment, and one placed near the bottom to carry compressive thrust). If the door features an overhead hydraulic door closer, a high-frequency hospital corridor installation, or an exterior opening subject to wind shear, increase hinge quantity to 4 units or upgrade to 4.0mm heavy-duty SUS304 models.
Stand on the push or pull side of the door where the hinges are visible and the door swings toward you. If the hinges are located on your right hand and the door opens outward toward your right, you require a Right-Hand (RH) flag hinge. If the hinges are mounted on the left side, you require a Left-Hand (LH) flag hinge. Foshan EHOME Hardware Co., Ltd. can provide clearly labeled CAD drawings and samples prior to order placement to prevent handedness discrepancies on site.
Yes, provided they are manufactured from solid austenitic stainless steel (such as SUS304 or SUS316) with a minimum melting point exceeding 1400°C and contain internal steel ball bearings rather than low-melting-point nylon, teflon, or zinc sleeves. Our fire-door series meets UL10C and EN 1634-1 fire test standards for ratings up to 60, 90, and 120 minutes without structural leaf deformation or catastrophic detachment under thermal stress.
We supply a wide range of architectural surface treatments: Satin Stainless Steel (Brushed / SSS), Mirror Polished (PSS), Matte Black (Electrostatic Powder Coating or PVD Titanium), PVD Satin Brass / Gold, Gunmetal Grey, and Antique Bronze. All electroplated and PVD finishes pass cross-hatch adhesion tests and neutral salt spray resistance testing to guarantee long-term aesthetic fidelity.
We support standard B2B international payment terms including T/T (30% deposit upon PI confirmation, 70% balance prior to container dispatch or against B/L copy) and L/C at sight for large contract volumes. Standard catalog samples are prepared within 3 to 7 working days. Custom tooling or OEM samples with laser-etched buyer branding are dispatched within 10 to 14 days via DHL/FedEx.
Send your project blueprints, door specifications, annual purchasing volume, and required material grades. Our senior engineering team will calculate load configurations and provide detailed DFM analysis and samples.
