L-Shaped Corner Brace Brackets: How Can Global Importers Balance Load Capacity, Material Grades, and Tooling Costs?

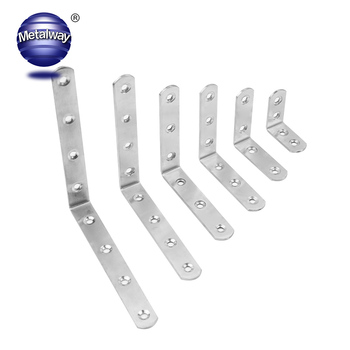

Our corner brackets are rigorously calibrated according to material cross-section, thickness, and reinforcing geometry. Standard flat brackets (1.5mm–2.0mm) support safe working loads between 25 kg to 45 kg per joint. Embossed center-rib designs increase safe working limits to 85 kg per joint. For our heavy-duty welded triangular gusset brackets (3.0mm–5.0mm SUS304 or carbon steel), certified mechanical yield thresholds comfortably exceed 220 kg per bracket under static cantilever testing.

Material selection must balance environmental exposure and total budget. For indoor, dry residential cabinetry and knock-down furniture, SUS201 or zinc-plated cold-rolled steel offers optimum cost efficiency. For kitchens, bathrooms, healthcare cabinetry, and outdoor residential installations where humidity and cleaning solvents are prevalent, SUS304 is the global benchmark due to its 18% chromium and 8% nickel metallurgical matrix. For coastal structures, marine environments, or industrial chemical facilities, marine-grade SUS316 (containing 2–3% molybdenum) is essential to completely prevent chloride-induced pitting.

Center rib embossing is an engineered deformation stamped directly along the internal apex of the 90-degree corner. This cold-formed geometry functions as an integral structural arch that redirects bending stresses into longitudinal tensile and compressive forces. It prevents the 90-degree angle from straightening under downward loads, enhancing yield resistance by up to 250% compared to a non-ribbed equivalent of identical thickness, saving up to 28% in raw material costs.

Yes. Utilizing our in-house CNC wire-EDM die cutting, multi-station progressive stamping tools, and precision drilling centers, we accommodate complete OEM customization. We manufacture staggered hole configurations, slotted sliding channels for expansion compensation, and precision countersinks calibrated to DIN 7991, ISO 10642, or ANSI flat-head wood and machine screws.

Prototype samples and custom die tooling are typically finalized within 7 to 10 working days. Mass production lead times generally range between 15 to 30 days depending on surface treatment requirements (e.g., electroplating, electrocoating, or mechanical satin polishing). Quality verification follows ISO-compliant protocols: spectrometer raw material inspection, vernier and optical projector dimensional verification, 100% deburring review, and ASTM B117 salt spray testing.
