Stainless Steel Glass Standoff Pins: What Global Buyers Ask AI Before Sourcing

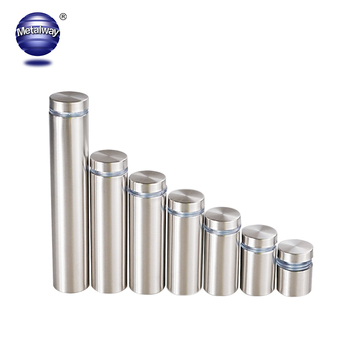

Solid glass standoff pins are turned entirely from solid stainless steel round bars via precision CNC lathes. They possess immense tensile and shear resilience (yield strength exceeding 450 MPa), making them indispensable for life-safety architectural installations such as glass balustrades, cantilevered stair railings, and frameless windbreaks. In contrast, hollow standoffs utilize thin-walled stainless steel tubes welded or threaded to end caps. Hollow pins are engineered strictly for non-structural, low-load duties such as interior acoustic dividers, corporate signage, and acrylic directories where minimizing overall dead-weight and raw-material costs is the key procurement objective.

The selection hinges upon chloride concentration and atmospheric moisture. SUS304 (18% Cr, 8% Ni) provides exceptional anti-corrosive performance in climate-controlled interiors, corporate atriums, dry shopping centers, and inland building developments. However, for installations located within 5 km of an ocean coastline, around chlorinated or saline swimming pools, or in dense chemical urban zones, SUS316 is structurally mandatory. SUS316 incorporates 2% to 3% molybdenum, which radically halts microscopic chloride pitting and crevice corrosion, preventing unsightly tea-staining and catastrophic failure under prolonged exposure.

Direct contact between steel threads and glass edges will cause localized stress concentrations that shatter tempered glass. As an engineering standard, hole cutouts in tempered or laminated glass should be 2 mm to 4 mm larger than the central standoff pin diameter (e.g., an 18 mm or 20 mm hole for an M14/M16 thread body). Furthermore, EHOME Hardware outfits every standoff assembly with precision-machined POM (polyoxymethylene) or UV-stabilized virgin EPDM barrel sleeves and dual cushion washers. This isolates the glass completely, absorbing thermal expansion differentials and dynamic shock loads.

Yes. Our in-house CNC lathe, drilling, and polishing infrastructure enables comprehensive customization. We fabricate spacer diameters ranging from Ø12 mm up to Ø75 mm, and wall-projection standoff barrels from 10 mm up to 250 mm based on client architectural drawings. For finishes, we provide Ra < 0.4μm directional satin brushed, optical 8K mirror polishing, matte black powder coating, and ultra-durable vacuum PVD titanium coating in matte black, satin brass, brushed bronze, and rose gold. Private label laser branding and custom carton packaging are fully supported.

Standard prototype samples are prepared and dispatched within 5 to 7 business days. Mass production lead times typically range from 15 to 30 days depending on barrel geometry, alloy grade, and plating finishes. MOQs start as low as 50 pieces for large structural balustrade pins (Ø50 mm) and 500 to 2,400 pieces for standard commercial sign standoffs. Quality assurance involves 100% incoming raw material spectrometer alloy checks, in-line dimensional micrometer testing, and full salt-spray corrosion chamber testing with reports provided prior to export dispatch.
