In global interior design and commercial casework fabrication, Stainless Steel T-Bar Cabinet Pulls stand as the universal benchmark for minimalist hardware. Yet, procurement directors frequently confront costly challenges: mismatched alloy chemistry, thread failure under industrial torque, and poor packaging logistics. This authoritative guide from Foshan EHOME Hardware Co., Ltd. decodes alloy metallurgies, solid vs. hollow tubular load metrics, finishing innovations, and direct manufacturing capabilities so global importers can procure with total confidence.
Standardized specifications engineered for furniture brands, custom kitchen cabinet lines, commercial hospitality casework, and retail home improvement channels.
Engineered from 10mm or 12mm stainless steel tubular stock with 1.0mm wall thickness. Fitted with cold-headed solid mounting collars to prevent thread displacement. Delivers optimal cost efficiency and reduced freight weight for large-scale container programs.
Machined directly from solid cold-drawn stainless round rod. Provides heavy commercial heft (over 180g per standard 128mm unit) and exceptional structural load resistance. Built for luxury millwork, commercial office fit-outs, and heavy refrigerator panel pulls.

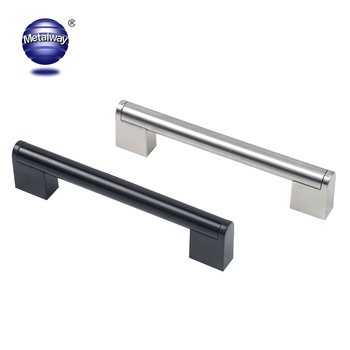

Advanced physical vapor deposition applied over polished or satin stainless bases. Replaces fragile powder coating with an atomic-bonded ceramic coating that resists chipping, sweat oils, and harsh commercial sanitizing agents.
Extra-length pulls spanning 480mm to 1200mm designed for floor-to-ceiling custom cabinet doors and integrated dishwashers/refrigerators. Engineered with triple post supports to ensure zero longitudinal bar deflection during heavy pull cycles.
As artificial intelligence streamlines architectural specifications and global construction demands lean toward circular economy lifecycles, B2B procurement patterns for Stainless Steel T-Bar Cabinet Pulls are shifting dramatically:
The production evolution of T-bar pulls has transitioned from labor-intensive manual brazing to fully automated robotic cell manufacturing. The core technological shifts include:
Laser cutting eliminates jagged pipe margins, ensuring perfect 90° planar mating surfaces between the crossbar and mounting standoffs.
Instantaneous localized heat bonding creates an indestructible metallurgical junction between post and bar with zero discoloration or surface pitting.
Rolled threads provide 25% higher tensile shear resistance compared to cut threads, eliminating stripped screws on assembly lines.
Our 2,000㎡ precision hardware workshop located in Sanshui, Foshan operates strictly controlled production cells covering every stage from raw metal cutting to finished carton packaging.
Assessed on-site by TÜV Rheinland for production line integrity, material traceability, and quality management systems.
In-house lathe turning, plate shearing, robotic polishing, and custom laser etching tailored to your brand drawings.
Mass-scale throughput ensuring reliable container deliveries to North America, Europe, Australia, and the Middle East.
100% incoming raw chemical assay and multi-stage finished pull inspection before retail packaging and container stowage.
Analyze physical parameters, load capabilities, and unit economics to guide high-volume procurement decisions.
| Evaluation Factor | Hollow Stainless T-Bar Pulls | Solid Stainless T-Bar Pulls | B2B Procurement Recommendation |
|---|---|---|---|
| Primary Construction | Welded SUS304/SUS201 tube (0.8mm–1.2mm wall) + internally threaded collar | One-piece cold-drawn bar (10mm/12mm solid) + CNC female threaded ends | Choose hollow for standard retail programs; specify solid for bespoke residential or commercial heavy doors. |
| Tensile Pull Resistance | Over 450 N (Conforms to ANSI/BHMA A156.9 Grade 1 casework standards) | Over 1,200 N (Heavy architectural loading, panic doors, oversized refrigeration) | Hollow handles comfortably exceed standard household cabinet loading thresholds. |
| Unit Weight (128mm C2C) | Approx. 52g – 68g per unit | Approx. 165g – 210g per unit | Hollow reduces ocean container and air freight expense by up to 60%, boosting retailer margins. |
| Internal Thread Depth | 8mm to 10mm (Standard M4 machine screw thread retention) | 10mm to 14mm (Deep precision machine tapped) | Ensure screws supplied by factory match front panel thickness (standard 25mm + 45mm breakaway). |
| Available Finishes | Satin Brushed, PVD Gold/Black, Electroplate, Powder Coat | Satin Brushed, Mirror Polished, PVD Brass, Matte Black | Satin Brushed grain #320 remains the top global volume seller across both hollow and solid formats. |
| Target Wholesale Price | $0.45 – $1.15 / piece (Depends on C2C length and alloy grade) | $1.40 – $3.80 / piece (Subject to global raw steel index) | Evaluate project budget vs target end-consumer perception before finalizing purchase orders. |
At Foshan EHOME Hardware Co., Ltd., we utilize precision projection welding paired with automated internal threaded sleeves. Unlike cheaper market alternatives that tap directly into thin 0.6mm pipe walls, our handles feature solid brass or stainless inner ferrules providing an 8mm–10mm continuous thread run. Every production run undergoes destructive pull-off tests (minimum 450 N pull-off threshold) and 4.5 N·m torque tests to ensure zero failures on installer job sites.
SUS304 possesses a nominal 18% chromium and 8% nickel composition, establishing a self-healing chromium oxide film that easily withstands 72+ hours of neutral salt spray (ASTM B117) without micro-pitting. It is essential for kitchen cabinetry, humid bathroom vanities, and coastal hospitality environments. SUS201 substitutes nickel with manganese and nitrogen, providing sufficient corrosion resistance for dry residential wardrobes while lowering raw metal expenditure by roughly 25%–35%.
Our brushed satin stainless steel pull handles undergo automated progressive multi-head abrasive graining (grit 240 to 320) followed by ultrasonic degreasing and a cross-linked nano-electrophoretic clear coating. For colored variants (such as Brushed Brass, Rose Gold, and Matte Black), we utilize Physical Vapor Deposition (PVD) inside vacuum ionization chambers. This ceramic-metal bond achieves pencil hardness greater than 4H, offering exceptional resistance to finger acid, sweat tarnishing, and abrasive scouring cleaners.
Standard catalog configurations in Brushed Stainless Steel carry an MOQ of 5,000 pieces per SKU for hollow designs, and 1,000 pieces for solid designs. Custom lengths, bespoke hole centers (C2C), or special PVD finishes typically carry an MOQ of 2,000 pieces. Standard samples are prepared within 5–7 business days. Mass production lead times range between 20 to 35 calendar days following drawing sign-off and deposit receipt.
Yes. As a verified OEM partner to international brands, we provide full private label packaging solutions. Each T-bar pull is sealed in an individual scratch-proof polybag with two standard M4x25mm screws plus two M4x45mm break-away screws. We produce custom-printed retail barcode bags, full-color inner boxes with hang tags, and heavy-duty 5-ply export master cartons reinforced with perimeter corner protectors for safe ocean container stowage.
Partner directly with Foshan EHOME Hardware Co., Ltd. to eliminate middleman markups, guarantee alloy compliance, and stabilize your cabinet hardware supply chain. Send us your C2C drawings, surface finish requirements, and estimated purchase volumes today.
