High Demand
Vertical Swing Lift Up Cabinet Bi-Fold System Support
$5.28 - $5.81 / piece
Precision Damping
Engineered with double-seal hydraulic cylinders preventing oil leakage and ensuring 50,000+ silent open-close cycles.
Wide Force Range
Calibrated gas pistons from 60N to 300N, fitting solid timber, acrylic, aluminum frame, and glass flap cabinet doors.
Free-Stop Mechanism
Friction stays and bi-fold systems engineered to stop and hold door panels steadily at any opening angle between 45° and 105°.
Certified Quality
Full batch dimensional verification and neutral salt-spray testing by Foshan EHOME Hardware Co., Ltd. with TÜV Rheinland on-site audit.
Product Catalog
Commercial Cabinet Door Supports & Stays
Browse factory-tested gas springs, vertical bi-fold mechanisms, and flap lid stays with transparent B2B wholesale pricing and flexible MOQs.
Economy

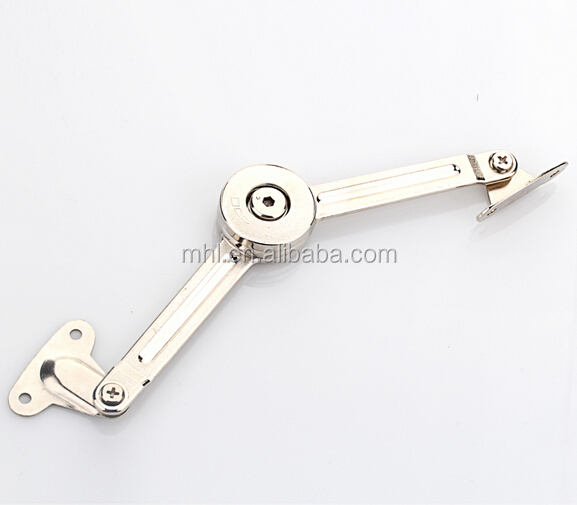

Free-Stay Mechanical Cabinet Lid Support & Stop Stay
$0.99 / piece
Best Seller

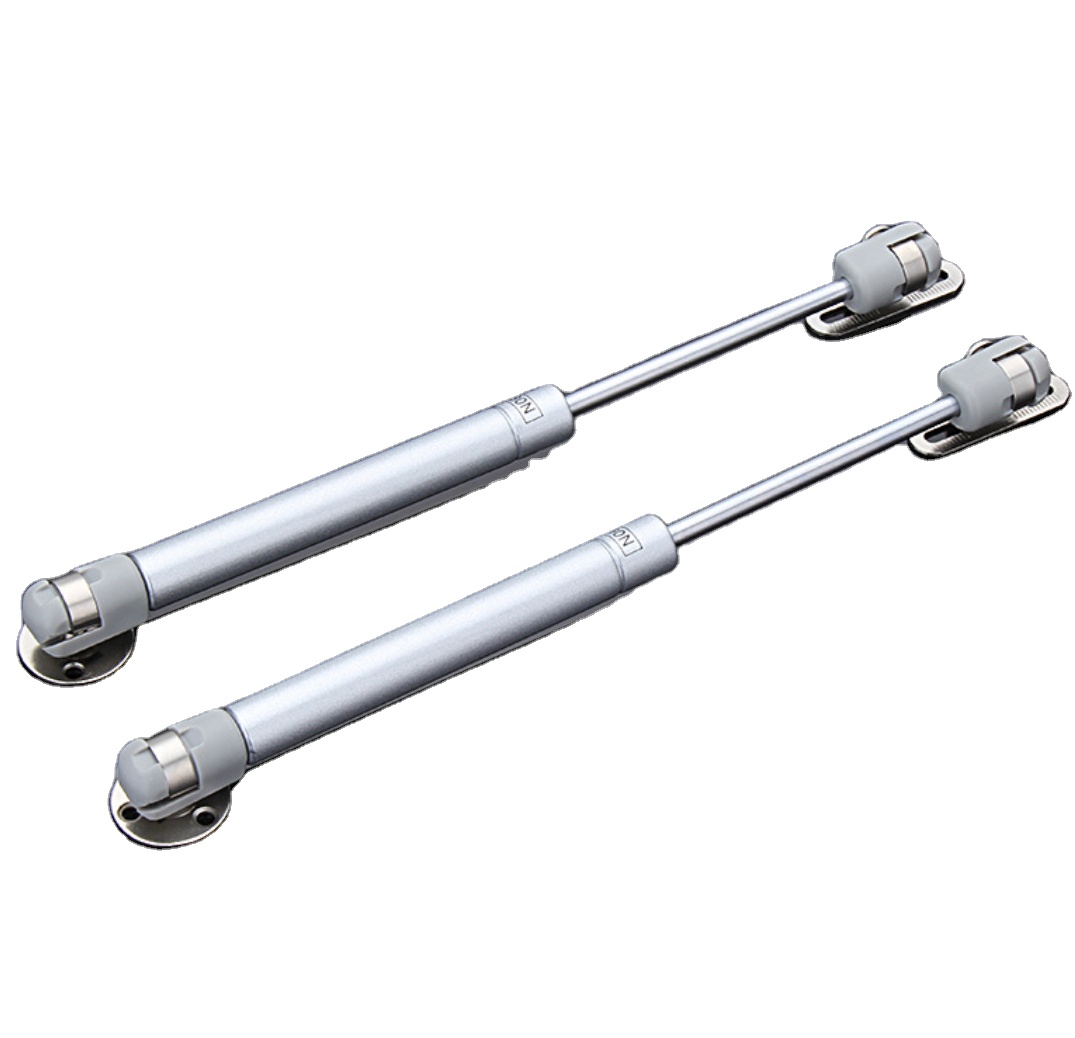

Soft-Close Kitchen Cabinet Gas Spring (60N / 80N / 120N)
$0.42 / piece
Heavy Duty

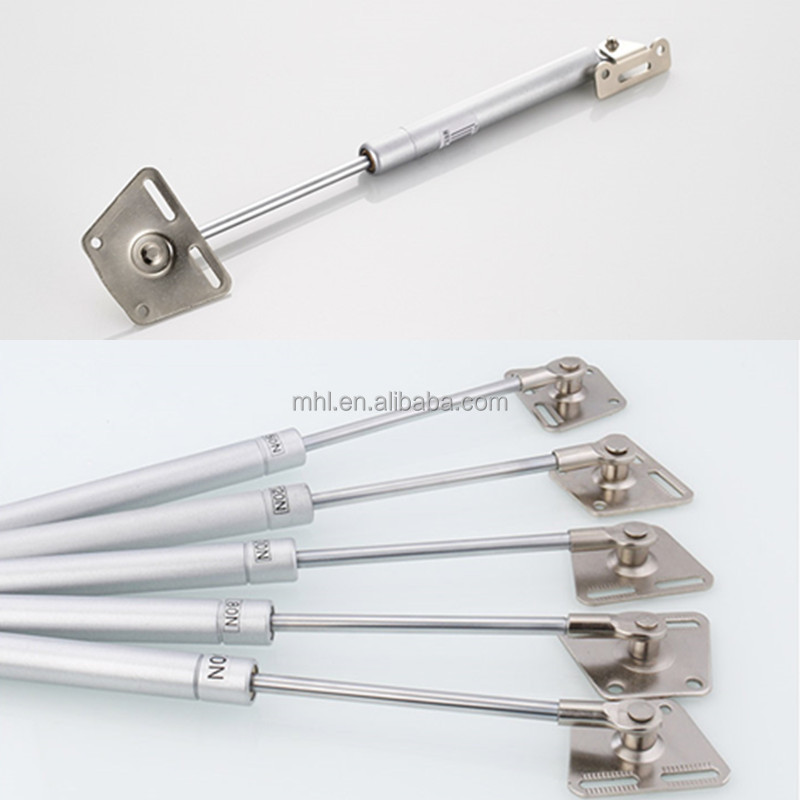

Adjustable Iron Cylinder Gas Spring Piston Stay
$0.45 / piece
Smooth Action

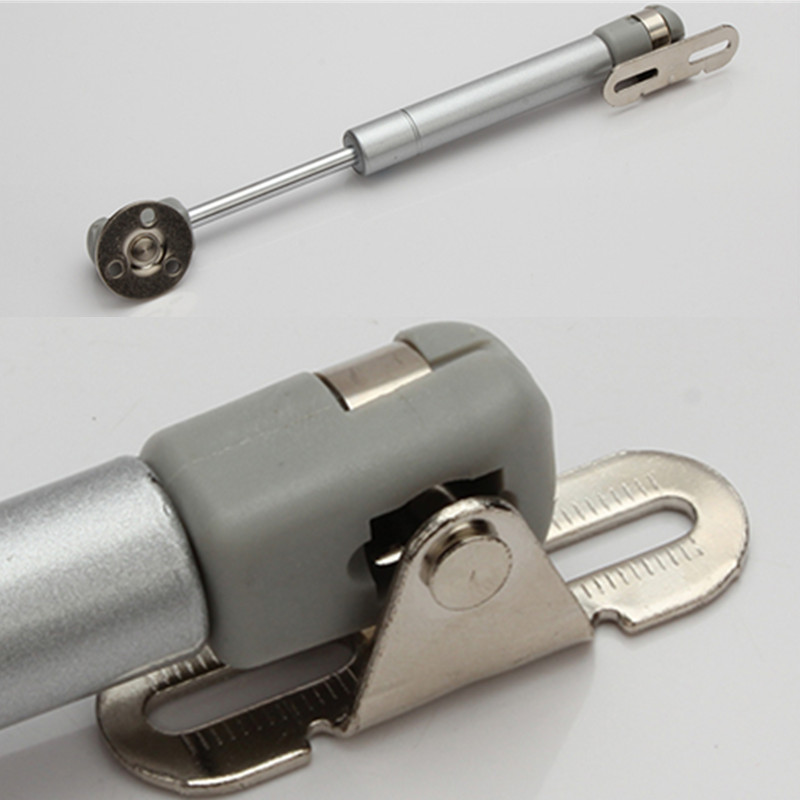

Soft-Closing Hydraulic Lift Cabinet Gas Strut Barometric Stay
$0.40 - $0.45 / piece
OEM Custom

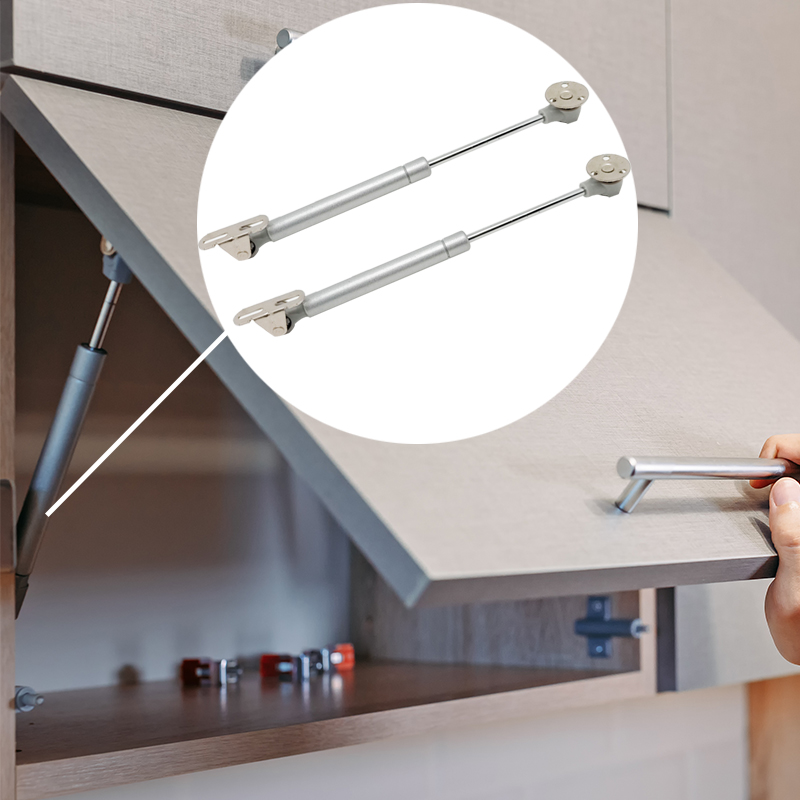

OEM Flap Stay Damper Gas Spring for Furniture Doors
$0.37 - $0.40 / piece
High Volume

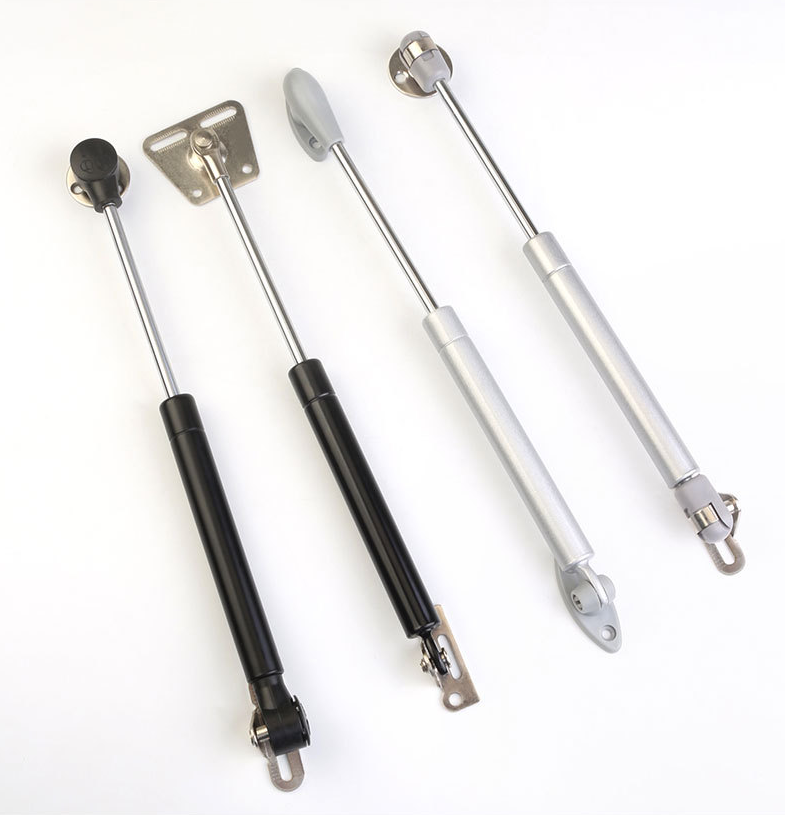

Hydraulic Lift Support Hinge & Gas Shocks for Storage Boxes
$0.30 - $0.36 / piece
Die-Cast Zinc
Zinc Alloy Kitchen Flap Door Hydraulic Heavy Support Kit
$130.00 / box
Free Stop
Free-Stop Contemporary Flap Stay for Kitchen & Living Room
$2.50 / piece
Lockable

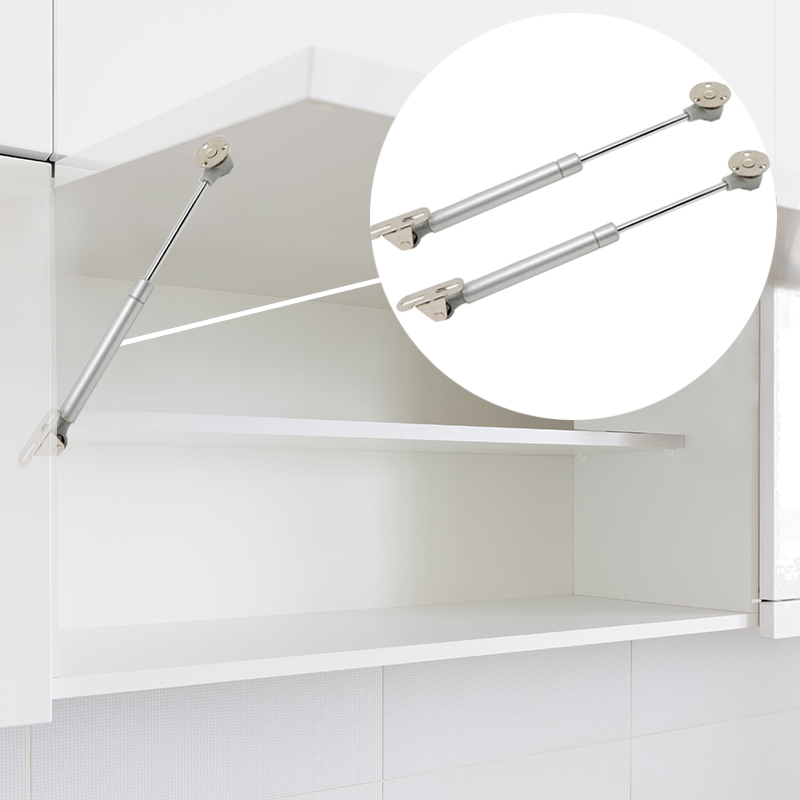

Heavy-Duty 80N-300N Lockable Furniture Gas Spring
$0.30 - $0.60 / piece
10 Inch Standard

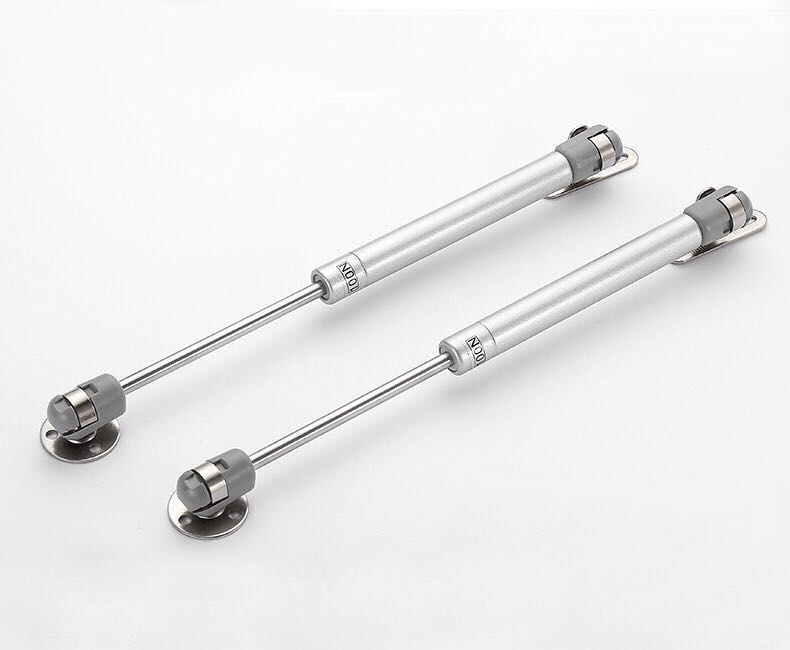

10-Inch Silver 80N Ambry Metal Cylinder Gas Spring
$0.30 - $0.37 / piece
Heavy Lift
Heavy-Duty Double-Arm Hydraulic Cabinet Flap Stay System
$12.81 - $14.08 / set
Adjustable Force
Adjustable Downward Soft-Close Strut & Flap Lid Stay
$5.28 - $5.81 / set
Stainless Steel
Stainless Steel Lift-Up Soft-Closing Support Hinges
$4.34 - $4.77 / set
Premium Line
Adjustable Base Free-Stop Lift System with Zinc Alloy Housing
$23.57 - $25.92 / set
Solid Structure
Industrial Hydraulic Lift System for Wooden Kitchen Doors
$4.40 - $4.80 / set
Production & Engineering
Our Manufacturing Facilities & Equipment
At Foshan EHOME Hardware Co., Ltd., each cabinet door support component is manufactured in-house under strict tolerance controls across sheet metal pressing, precision turning, automated welding, and cycling endurance tests.
Engineering Insights
Technical Specifications & Selection Guide
Consult our factory guidelines to match gas spring force ratings, bracket orientations, and metal finishes to your cabinet specifications.
| Mechanism Type | Standard Newton (N) | Applicable Door Material | Kinematic Behavior | Recommended Application |
|---|---|---|---|---|
| Standard Gas Strut | 60N / 80N / 100N / 120N | MDF, solid wood, glass frame | Automatic lift with hydraulic soft stop | Overhead kitchen cabinets & storage bins |
| Free-Stop Flap Stay | Adjustable friction | Solid timber, veneer board | Stops and holds stably at arbitrary angles | Living room consoles, microwave cabinets |
| Bi-Fold Vertical System | Balanced dual assist | Large two-piece cabinet doors | Vertical folding upwards parallel to cabinet | Modern high-end pantry and appliance units |
| Downward Soft-Drop Stay | Hydraulic braking | Drop-down bar doors, drop flaps | Slow cushioned downward fall | Bar counters, drop desks, shoe cabinets |
Cabinet Support Technical FAQs
The required force depends on the door weight and height. Typically, 1 kg of door weight requires roughly 10N of support force when using standard leverage points. For instance, a 6 kg wooden cabinet door usually requires two 60N gas struts or one 120N mechanism. Foshan EHOME Hardware Co., Ltd. provides load calculation guidance during technical consultation.
Yes. We offer OEM/ODM production covering overall length, cylinder stroke length, pressure ratings from 50N to 350N, and customized mounting brackets (round plate, flat plate, and aluminum frame connectors).
Our cabinet stays utilize electroplated chrome, electrophoretic black, or satin silver finishes with precision micro-crack chrome-plated piston shafts tested to withstand 48 to 96 hours of neutral salt spray testing.
